ENGINE
Type / Horsepower / Cylinders
B&S Vanguard Big Block, 2-cylinder
Displacement
993 cc (60.6 cu. in.)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Air
Fuel
Gasoline - Unleaded
Fuel Capacity
45.4 l (12 U.S. Gal.)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration.
Muffler
Ultra quiet, single, industrial type.
TRANSMISSION & STEERING
Type
Design-matched G2 hydrostatic system with auxillary cooling fans, HydroGear variable displacement 16 cc piston-type pumps and high-torque Parker wheel motors.
Filtration/Hydro Fluid
7 micron absolute, spin-on / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000-hour change intervals.
Speed
0 - 10.5 mph (0 - 16.9 kph) 0 - 6.0 mph (0 - 9.7 kph) reverse
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Steering
One- or two-hand operation with adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Disc parking brakes, one for each drive wheel.

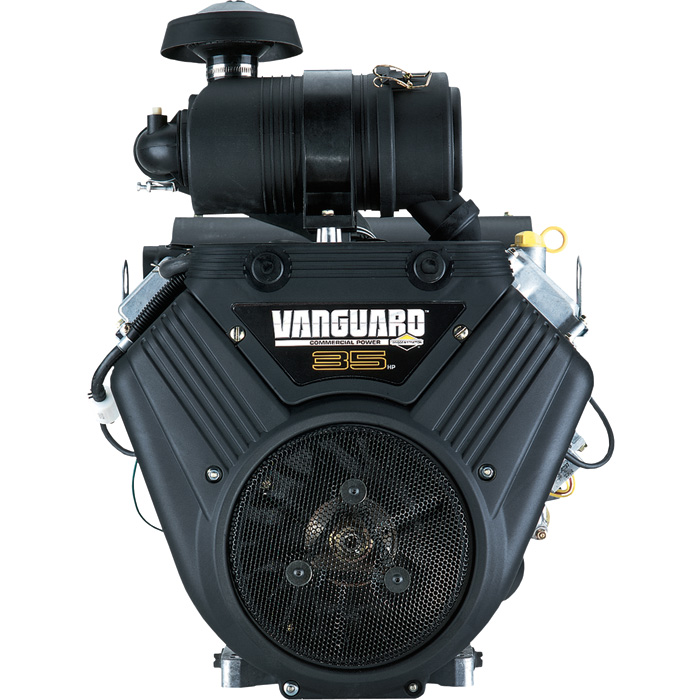

B&S VANGUARD BIG BLOCK
- 993 cc, air-cooled OHV Vanguard Big Block V-twin engine with horizontal crankshaft for longer life

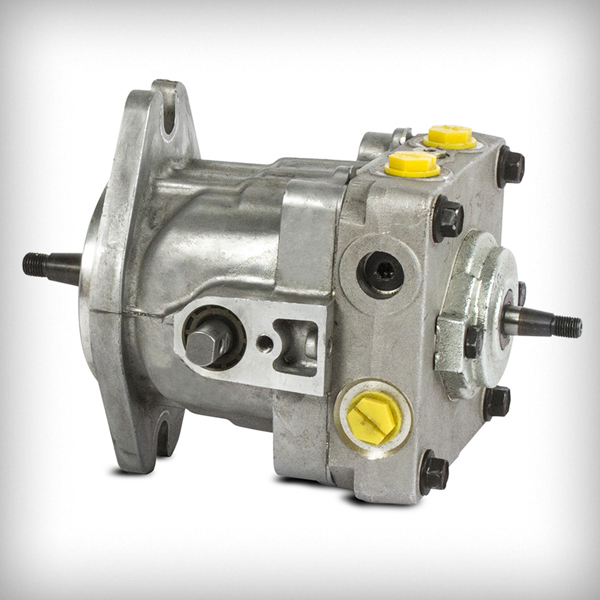

DESIGN-MATCHED G2 TRANSMISSION
- Robust G2 transmission features 7-micron absolute filter and CoolFan™ hydro cooling system
- HydroGear variable displacement 16 cc piston-pumps and high-torque Parker wheel motors
- Provides 1,000-hour transmission fluid change interval

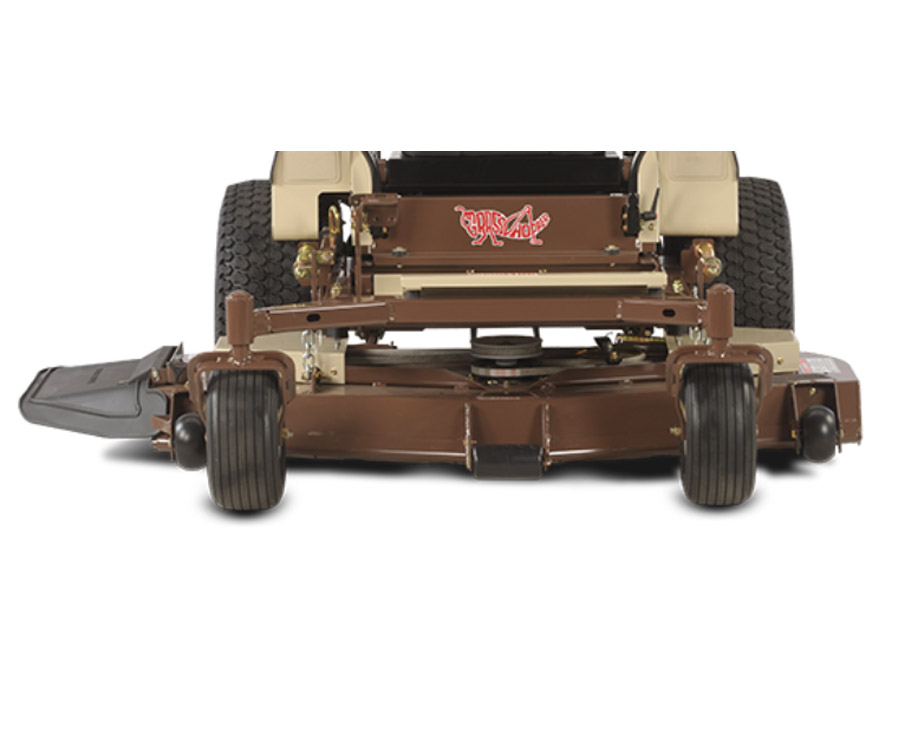

HEAVY-DUTY DECK
- Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
- Specially designed cutting chambers enhance airflow for better cut quality
- Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
- Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
- Spindle planes fabricated from double-layered, 7-gauge plus 10-gauge formed steel laminate that is 0.3138 inch thick 25.5 percent thicker than ½-inch steel
- Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
QUIKAJUST® DROP PIN HEIGHT ADJUSTMENT
- Raise and lower the deck easily with foot pedal and drop pin for precision cutting heights between 1.0 and 5.0 inches.
WARRANTY
- Commercial Use: 3-year unlimited hours; limited warranty covering parts and labor.
- Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
RUGGED CONSTRUCTION

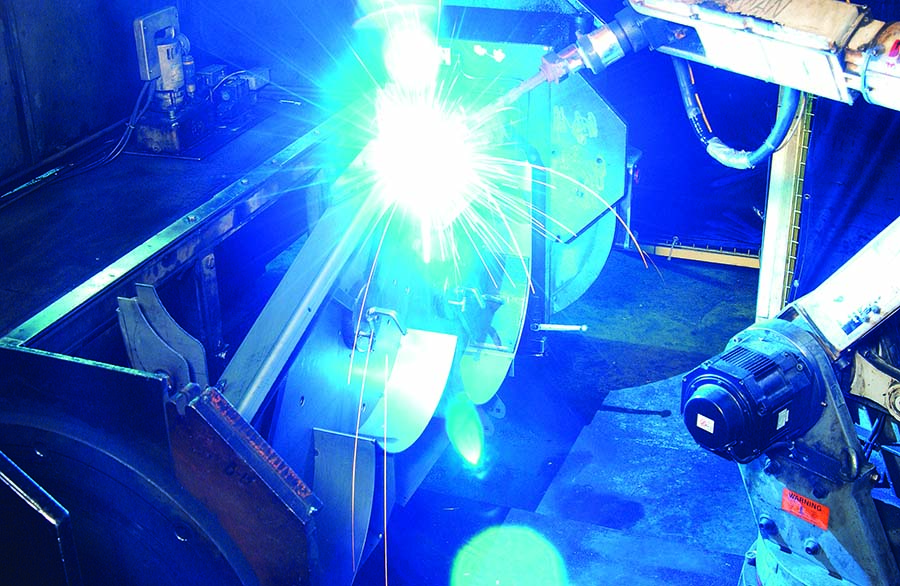

- Robotically-welded steel construction for long-lasting durability
- Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
REDUCED MAINTENANCE
- Only two Access-Eze™ lubrication points cut maintenance time up to 95%
- Self-tensioning belts minimize cost and labor on routine maintenance
ULTIMATE OPERATOR STATION®
- ComfortZone™ seat eliminates jostles and jolts with coil-spring suspension and a fully padded, high-back seat, padded armrests and variable density foam cushion. Iso-mounting smooths the ride, erases fatigue and keeps the operator comfortably in control at faster mowing speeds
- Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach
- One- or two-handed operation with ComfortReach™ adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
ULTIMATE SUSPENSION RIDE® SEAT
- Deep-cushioned, high-back, foam-padded, scuff-resistant Cordura®-covered seat with padded lumbar support and armrests
- Roomy, iso-mounted, shock
